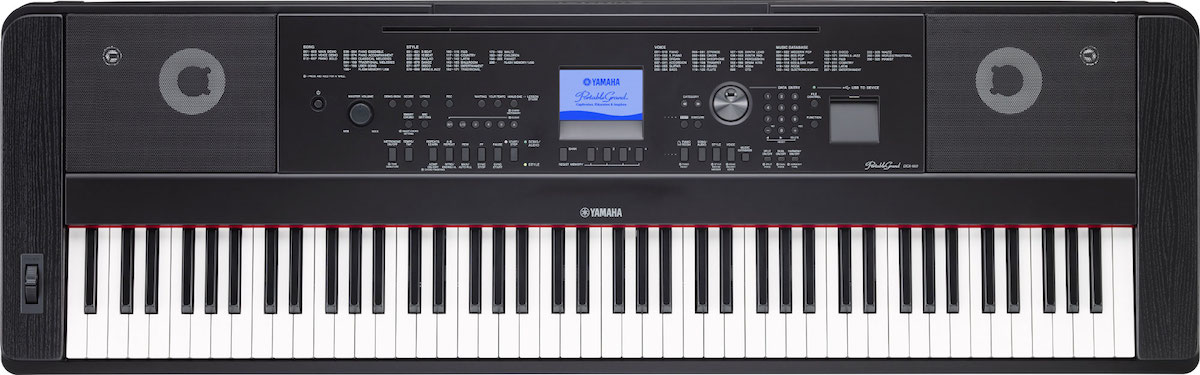

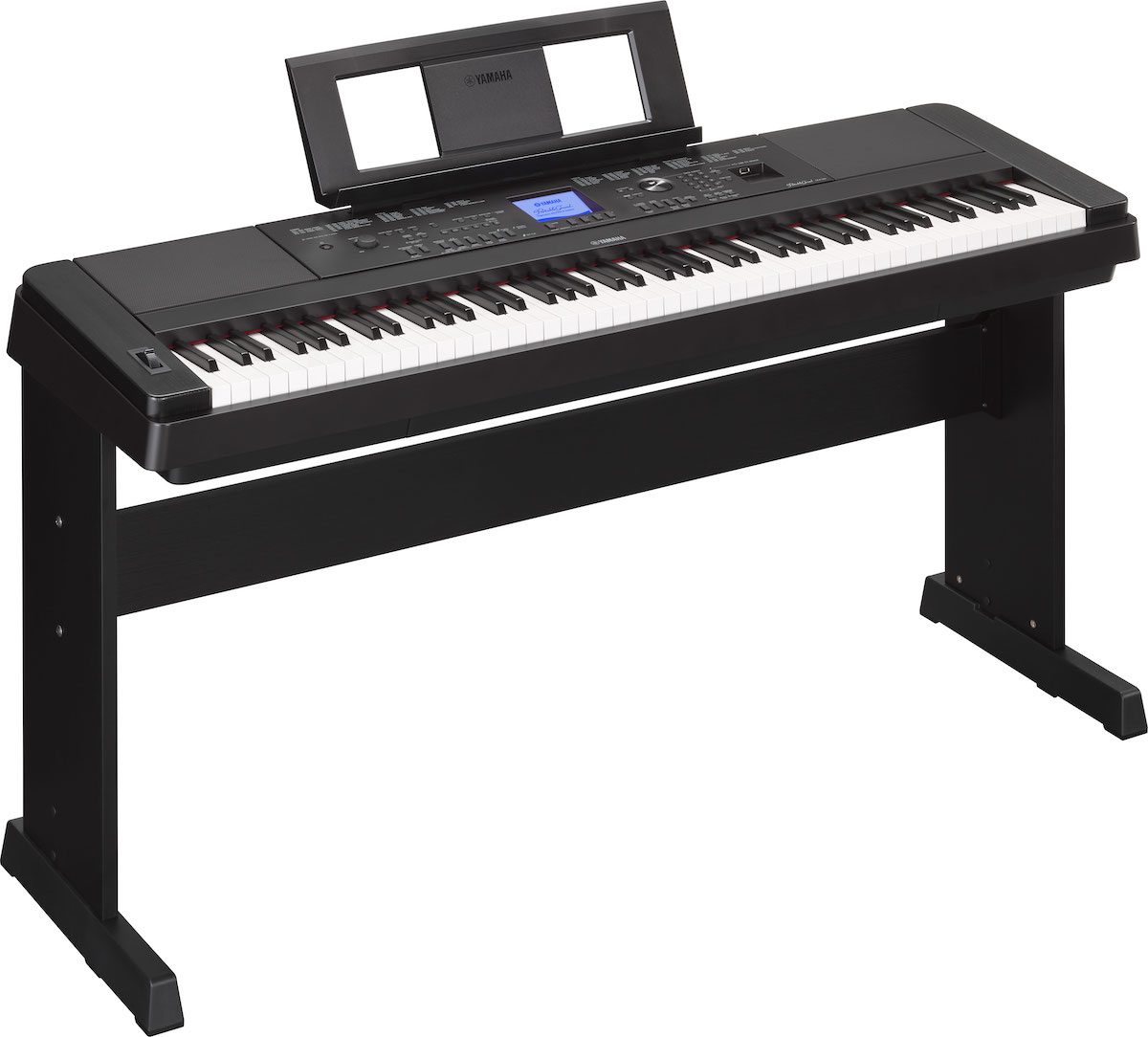

Yamaha DGX660B Digital Piano (*Local Pickup Only)

$1,299.00 $949.00

THIS PRODUCT IS AVAILABLE FOR LOCAL PICKUP ONLY!    For Exceptions, Please Call Us.

The new Yamaha DGX-660 is the latest ensemble digital piano to showcase a variety of interactive features that make learning, playing and sharing music fun for everyone. The new Piano Room feature of this Portable Grand lets you choose from a variety of pianos and acoustic settings to create your very own personal piano environment.

Yamaha keyboards are known for their versatility. Now you can connect a microphone to the instrument so you can sing along while you play, and hear your voice with digital effects through the built-in speakers. You can even record your performance to a USB device to share with your friends and family!

Comes with music rest that is not shown in picture.

Yamaha Authorized

Available on backorder

Print
SKU: 7017 Category:
Brands:

Description

The DGX-660 contemporary digital piano gives aspiring pianists a fun way to enhance their learning experience. Players of all abilities can feel what it’s like to play with a band and sound like a pro. The built-in USB Audio Recorder captures your musical inspirations when you’re ready to share your accomplishments.

Welcome to your personal “Piano Room”! The DGX-660 provides a dedicated virtual space where you can choose from a variety of pianos and acoustic settings, creating your personalized practice or performance environment. Simply select your desired piano, then choose any acoustic space ranging from a plain room, to a club stage, to a concert hall. You can even adjust the position of the virtual piano lid!

Simply connect a microphone to the DGX-660 to sing along either with your playing or with pre-recorded karaoke song files from Yamaha MusicSoft. You can hear what you sound like with everything mixed perfectly together from the built-in speakers. View the lyrics on the included score display. Three convenient presets are provided for different vocal performance situations. You can even create and save your own original microphone settings, including professional reverb and chorus effects.

Optional wireless adapters from Yamaha stream audio and MIDI to and from your iOS device with compatible music apps. The Chord Tracker app takes full advantage of this technology, allowing you to play back songs from your iOS device’s song library wirelessly through the DGX-660’s speaker system. Chord Tracker analyzes the audio songs stored in your iOS device and then displays the chord symbols for you. It can even create an XF song file that plays back the entire song using the DGX-660’s accompaniment Styles.

The Pure CF Sound Engine is the result of years of piano-making history combined with state-of-the-art sampling technology and piano expertise. Yamaha is the industry leader in digital piano technology, and you can hear this in the Voices that utilize the Pure CF piano sample. The sound of the renowned Yamaha CFIIIS 9′ concert grand piano is faithfully reproduced, allowing for incredible dynamics and expressiveness, making the DGX-660 worthy of the Yamaha name.
The Yamaha Graded Hammer Standard (GHS) keyboard features a weighted action with heavier touch in the low end and lighter touch in the high end, just like the hammers inside an acoustic piano. Great for the aspiring pianist, practicing on the GHS action builds the proper finger technique and strength for when the time comes to perform on an acoustic piano.

Damper Resonance digitally reproduces the sympathetic vibration between strings on acoustic pianos. Just like an acoustic piano, when the damper pedal is used in a performance, other strings add sonic color to the notes you play until the pedal is released.

The crystal-clear LCD can be switched to score or lyric display, showing you notation for any MIDI song that the DGX-660 is playing. Read the music for your favorite built-in songs, or follow along with songs downloaded to a USB device from Yamaha MusicSoft. Even see the score for songs you’ve created yourself on the DGX-660!

Size/Weight

Dimensions Width 1,397mm (55”) /with keyboard stand 1,399mm (55-1/16”)
Height 146mm (5-3/4”) /with keyboard stand  761mm (29-15/16”)
Depth 445mm (17-1/2”) /with keyboard stand  445mm (17-1/2”)
Weight Weight 21kg (46 lbs. 5 oz.)/with keyboard stand:28kg (61 lbs. 12 oz.)

Control Interface

Keyboard Number of Keys 88
Type Graded Hammer Standard(GHS) keyboard
Touch Response Soft, Medium, Hard, Fixed
Other Controllers Pitch Bend Yes
Display Type Full Dot LCD
Size 320×240 dots
Color Monochrome
Contrast Yes
Score Display Function Yes
Lyrics Display Function Yes
Language English
Panel Language English

Voices

Tone Generation Piano Sound Pure CF Sound Engine
Damper Resonance Yes
Polyphony Number of Polyphony (Max.) 192
Preset Number of Voices 151 + 15 Drum/SFX Kits + 388 XGlite
Featured Voices 1 Natural! Voice, 10 Live! Voices, 11 Sweet! Voices, 7 Cool! Voices
Compatibility GM Yes
XGlite Yes

Effects

Types Reverb 41 types
Chorus 44 types
DSP 237 types
Master EQ 5 types
Intelligent Acoustic Control (IAC) Yes
Functions Dual Yes
Split Yes
Panel Sustain Yes (Function Menu)

Accompaniment Styles

Preset Number of Preset Styles 205
Fingering Multi Finger, Full Keybord, AI Fingered
Style Control INTRO, MAIN x 2, FILL-IN x 2, ENDING
Other Features Music Database 320
One Touch Setting (OTS) Yes
Style Recommender Yes
Smart Chord Yes
Compatibility Style File Format (SFF),Style File Format GE (SFF GE)

Songs

Preset Number of Preset Songs 100
Recording Number of Songs 5
Number of Tracks 6
Data Capacity Approx. 30,000 notes for 1 user song
Compatible Data Format Playback SMF (Format 0, Format 1), XF
Recording SMF (Format 0)

Functions

Registration Number of Buttons 4 ( x 8 banks )
Lesson/Guide Yamaha Education Suite (Y.E.S.) Waiting, Your tempo, Minus one, Repeat & Learn, Chord Dictionary
Demo/Help Demonstration Yes
Overall Controls Metronome Yes
Tempo Range 5 – 280
Transpose -12 – 0 – +12
Tuning 415.3 – 440.0 – 466.2 Hz
Miscellaneous Piano Room Yes
Audio Recorder/Player Recording Time (max.) 80 minutes/Song
Recording WAV (44.1kHz, 16bit, stereo)
Playback WAV (44.1kHz, 16bit, stereo)

Storage and Connectivity

Storage Internal Memory Approx. 1.7 MB
External Drives USB Flash Memory
Connectivity DC IN 12V
Headphones x 1 (Standard stereo phone jack)
Sustain Pedal Yes
Pedal Unit Yes
Microphone Yes (Standard phone jack)
AUX IN Yes (Stereo mini jack)
USB TO DEVICE Yes
USB TO HOST Yes

Amplifiers and Speakers

Amplifiers 6W x 2
Speakers 12cm x 2 + 5cm x 2

Power Supply

Power Supply Adapter (PA-150 or an equivalent recommended by Yamaha)
Power Consumption 13 W
Auto Power Off Yes

Accessories

Accessories • Owner’s Manual • Data List • Keyboard Stand • Footswitch • Music Rest • AC Power Adapter (PA-150 or an equivalent recommended by Yamaha) *1 • Warranty *1 • Online Member Product Registration *2 *1: May not be included depending on your area. Check with your Yamaha dealer. *2: The PRODUCT ID on the sheet will be needed when you fill out the User Registration form.

Yamaha DGX660B Manual
