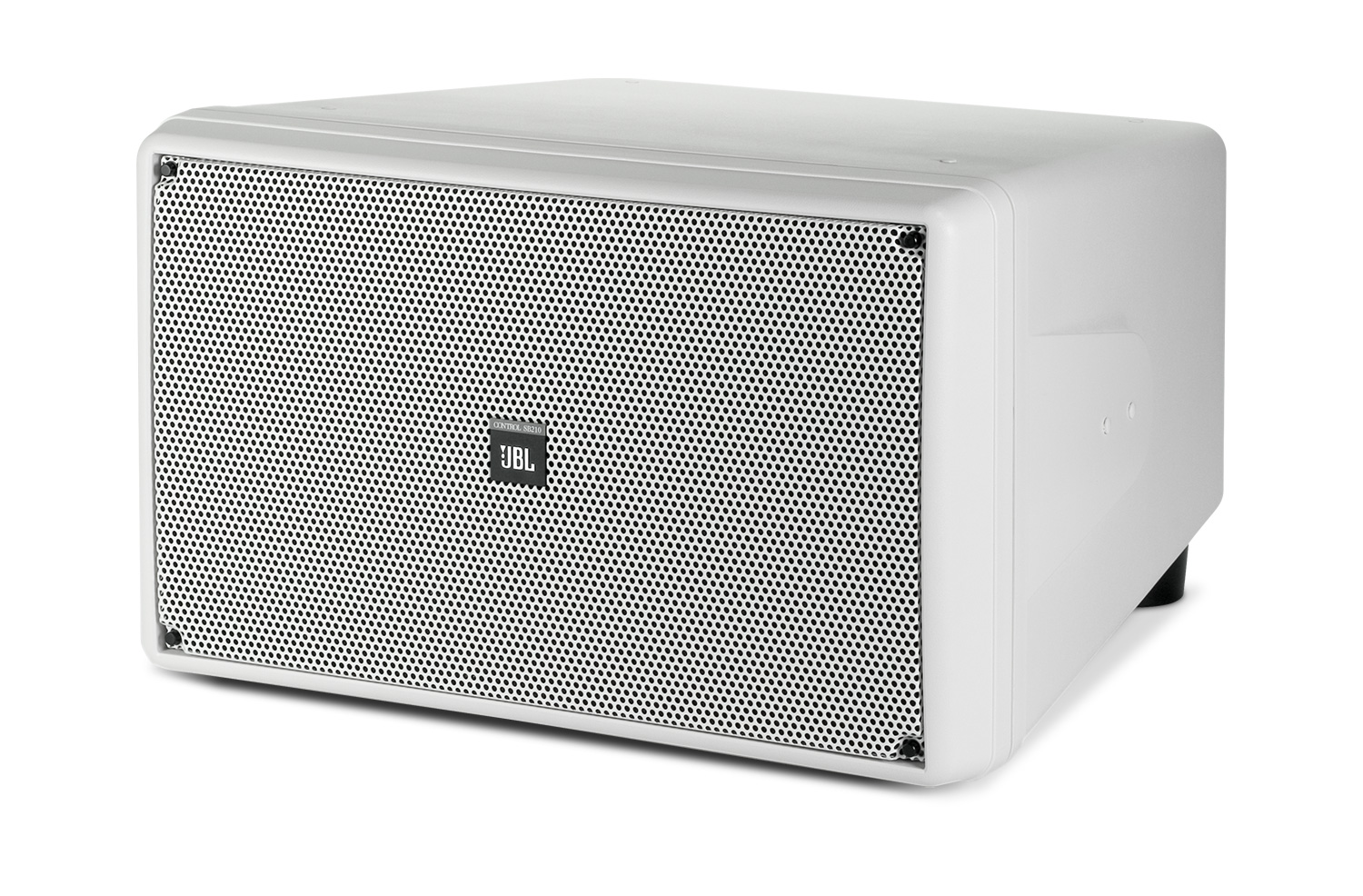

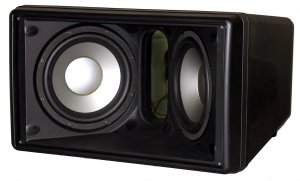

JBL Control SB210-WH Passive Subwoofer

$635.00

Dual 10 in. Indoor/Outdoor High Output Compact Subwoofer
The Control SB210 provides low frequency reinforcement for a wide variety of sound system applications. Its compact size, high output and outdoor capable design makes it one of the most versatile subwoofers in the installation market.

Out of stock

SKU: 4606 Categories: , Tag:
Brands:

Description

image_pdfimage_print

Features:

  • 2 x 250 mm (10 in ) Aluminum/ Ceramic Composite Cone Drivers.
  • 400 W Power Handling.
  • Fully Outdoor Capable Design.
  • SonicGuard™ Overload Protection.
  • 13 x M6 Suspension Inserts for Optional U-Bracket.
  • AV Shielded.
  • Compact, Low Profile Design.

Specifications:
Frequency Range: 42 Hz – 200 Hz (-10 dB)
Power Capacity: 800 W Continuous Program Power; 400 W Continuous Pink Noise
Nominal Sensitivity: 95 dB, 1 W @ 1 M in half space (2 in loading)
Frequency Response: 48 Hz – 120 Hz ( ± 3 dB)
Maximum SPL @ 1m: 122 dB (in half – space)
Nominal Impedance: 8 Ohms
Minimum Impedance: 7 Ohms at 100 Hz
Low Frequency: 2 x 250 mm (10 in) dia., 50 mm (2 in) edge wound ribbon voice coil, Aluminum/Ceramic Composite cone.
Enclosure Material: High Impact PolyStyrene (HIPS) w / internal 8 mm polyurethane co-mold.
Grille: Thermoset composite coated steel, multi-layer.
Overload Protection: SonicGuard™
Environmental: IEC 529 IP-X% rating. Exceeds MilSpec 810 for humidity, salt spray, temperature& UV. Passes Mil-STd-202F for salt spray.
Terminations: Screw-down terminal strips, zinc plated copper base, nickel-plated metal screw/washers. Accepts up to 9 mm outside, 4 mm inside open lug (#6, #8 or #10 lug), plus bare wire (up to AWG/2.5mm2).
Colors: Black or White (-WH)
Dimensions ( H x W x D): 356 x 590 x 570 mm (14 x 23.3 x 22.5 in.)
Net Weight (ea): 17.1 kg (38 lb)
Shipping Weight (ea): 19.4 kg (43 lb)
Included Accessories: 1 pc MTC-PC4 input panel cover, 4 pcs MTC-210FT floor standing foot,4pcs MTC-210RT foot receptacle for stacking.
Optional Accessories: MTC-210UB U-Bracket
Accessories: 4MTTC-210-SAT stereo / mono high passing network with Satellite outputs MTC-210T mono network with transformers for 70.7/100V distributed line systems. Taps at 250 W, 125 W, 62 W (plus 31 W for 70.7V only). MTC-210T-SAT stereo/mono passing network with Satellite outputs and transformers for 70.7/100-Volt distributed line systems. Taps at 125 W, 62 W, 31 W (plus 15W for 70.7V only).

JBL SB210 Data Sheet
