Rolls MX41b Passive Mixer

$77.00 $70.00

Rolls MX41b 4-Channel Passive Mixer

In stock (can be backordered)

Print
SKU: 4410 Categories: ,
Brands:
Free Shipping Or Local Pickup On All Orders!

Description

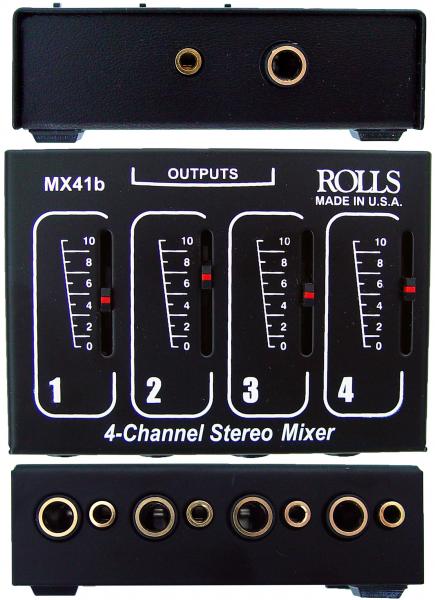

Rolls MX41b 4-Channel Stereo Or Mono Passive Mixer

The MX41b is a stereo four channel passive mixer for expanding a console mixer, mixing instruments, CD players, cassette players, computers etc. It requires no batteries or other power source. The unit may also be used as a 1 In 4 Out stereo splitter box when all controls are set to maximum.

MX41b Specifications:

  • 8 Stereo Inputs: 4: 1/4″ and 4: 1/8″
  • Stereo 1/4″ and 1/8″ Outputs.
  • Input Impedance: 10K to 47K Ohms
  • Output Impedance: 2.5K to 10K Ohms
  • Gain: -12 dB MAX
  • Dimensions: 3.6″ x 2.7″ x 1.42″ (W x H x D)
  • Weight: 1 lb.
  • Four Stereo 1/4″ and 1/8″ Inputs.
  • Stereo 1/4″ and 1/8″ Outputs.
  • 100K Ohm Potentiometers.

UPC 675889004113
