Proline 3 Inch Dredge With GX160 And HP300 Pump (*Local Pickup Only)




Years Of Trouble-Free Service With Unmatched Performance

When Proline Mining originally designed the Proline 3″ gold dredge, they set out to build a machine that they felt addressed most of the problems associated with this gold dredge size.

In stock (can be backordered)


Before its arrival most 3″ gold dredges were essentially the same size as their 4″counterparts because they used the same pontoons, frame, pump, etc. This gold dredge was designed to be smaller and lighter than our 4″ gold dredge, without sacrificing strength or stability. It sits on its own frame with pontoons that were matched to its size and weight. Another unique feature of this gold dredge is the pump. To this day, the HP300 is the only pump on the market designed specifically for 3″ gold dredges. There is no reason to pay for a big, heavy pump, when the idea is to keep the size and weight down in the first place.

This is the smallest dredge that Proline offers with our well known “sure-flow” hose coupler system. This tried and true design essentially eliminates all surface rock jams, while making it far easier to attach the dredge hose to the power jet.

In a time when some companies are now building flimsy, unstable dredges to cut manufacturing costs, and calling their creations “mini” this or “ultra” that, Proline continues to build a true 3″ dredge to provide years of trouble-free service with unmatched performance.

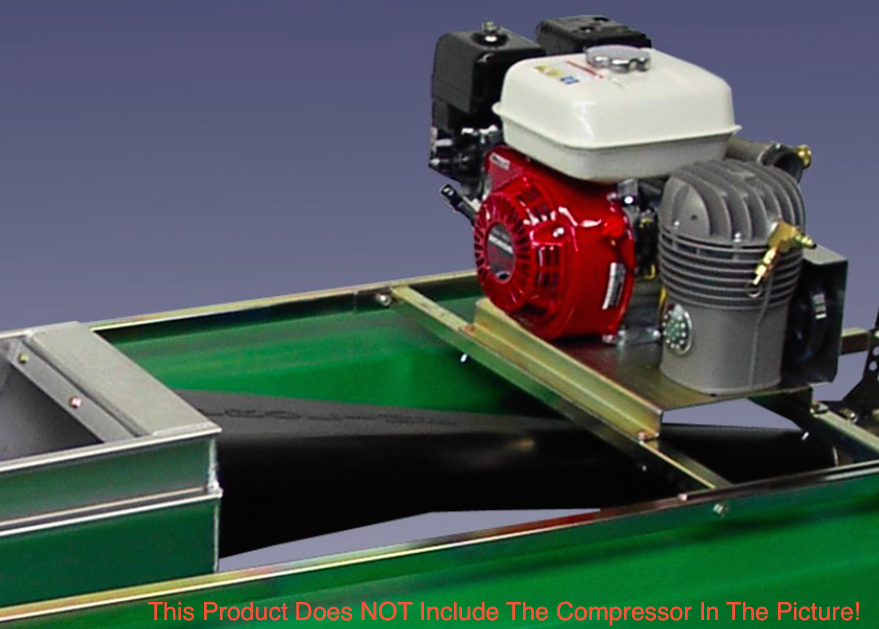

Engine: Honda GX160
Pump: HP300

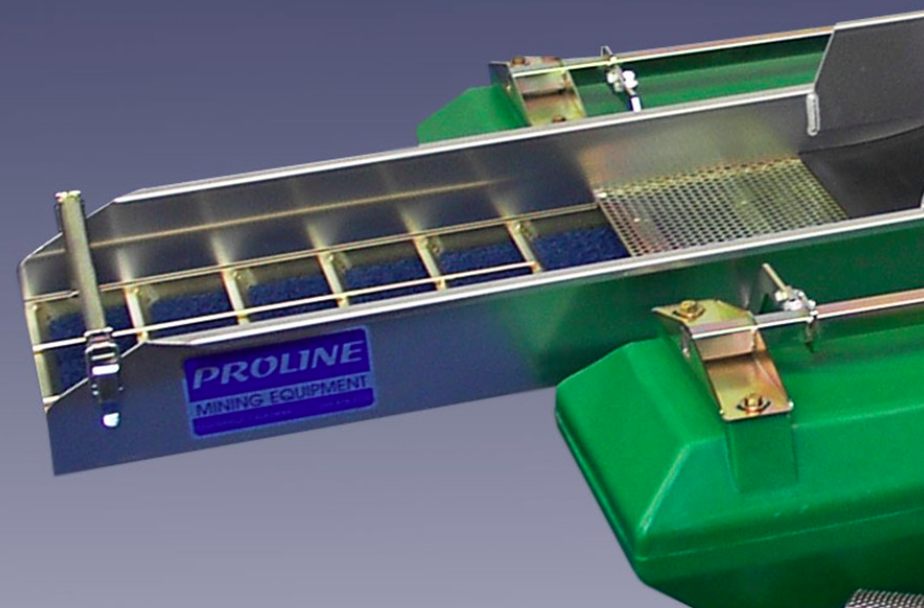

Sluice Box: 14″ x 48″
Dredge Hose: 3″ x 15 ft.
High Pressure Hose: 1.5″ x 60″
Intake Hose: 2.5″ x 38″
Flotation: 2 polyethylene floats 12.5″ X 41″ X 66″
Weight: 155 lbs.
