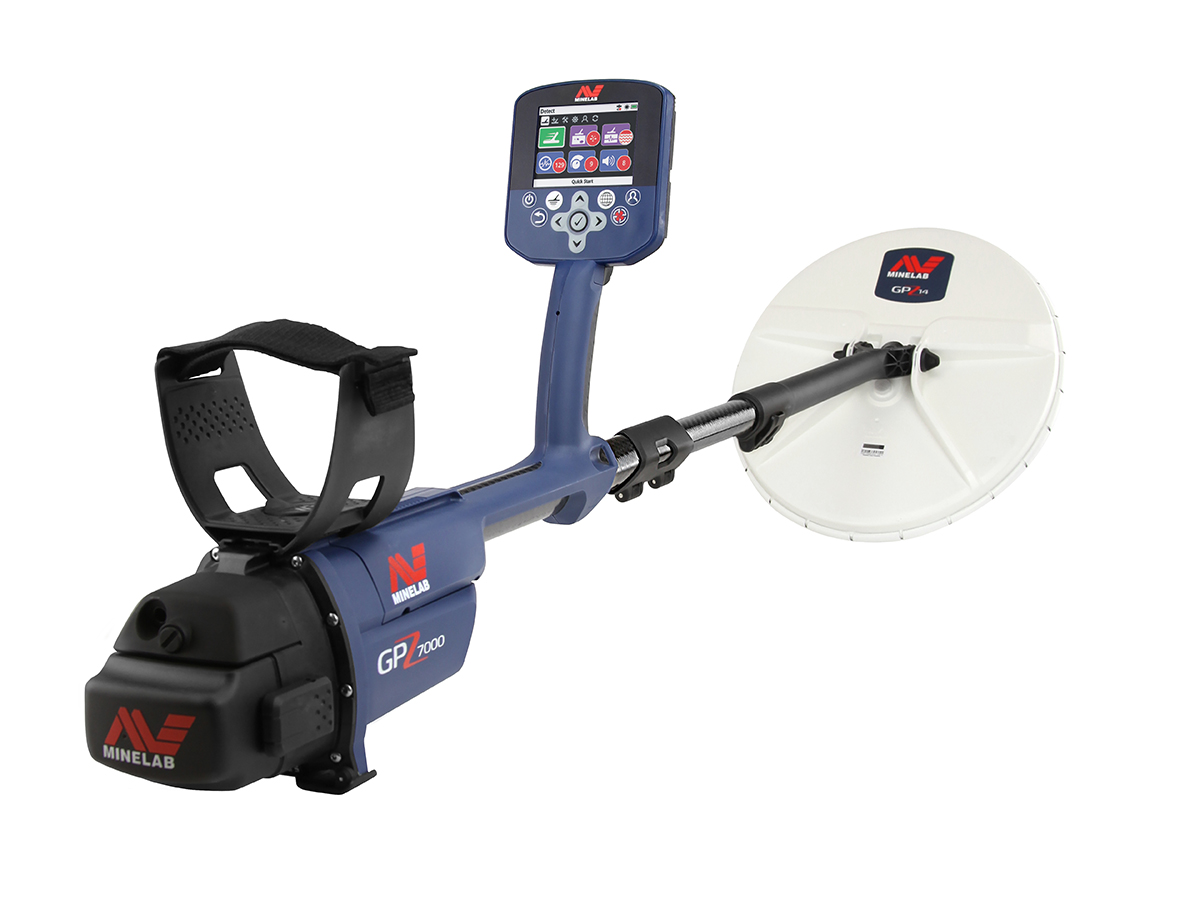

Minelab GPZ 7000 Metal Detector



Extreme Gold Depth
So how deep can you go? Well, up to 40%* deeper than the GPX series. Old gold fields are new again, thanks to the revolutionary new ZVT technology. Minelab takes you much deeper than ever before!

Maximum Gold Sensitivity
The incredible sensitivity of the GPZ 7000 with the Super‑D coil gives you the ultimate advantage in the field. Find gold others have missed, from sub-gram gold through to those elusive ‘retirement nuggets’ still out there.

Precision Ground Balance
Most gold is buried in the mineralized ‘difficult’ ground that many detectors can’t cope with. The GPZ 7000 accurately ‘balances’ and automatically ‘tracks’ to even the most severe ground conditions, with ease.

Enhanced Noise Immunity
The outstanding noise immunity of the GPZ 7000 enables very smooth and quiet detecting. With 256 Noise Cancel channels, the GPZ 7000 picks up less atmospheric noise. Listen to the gold, not the noise interference!

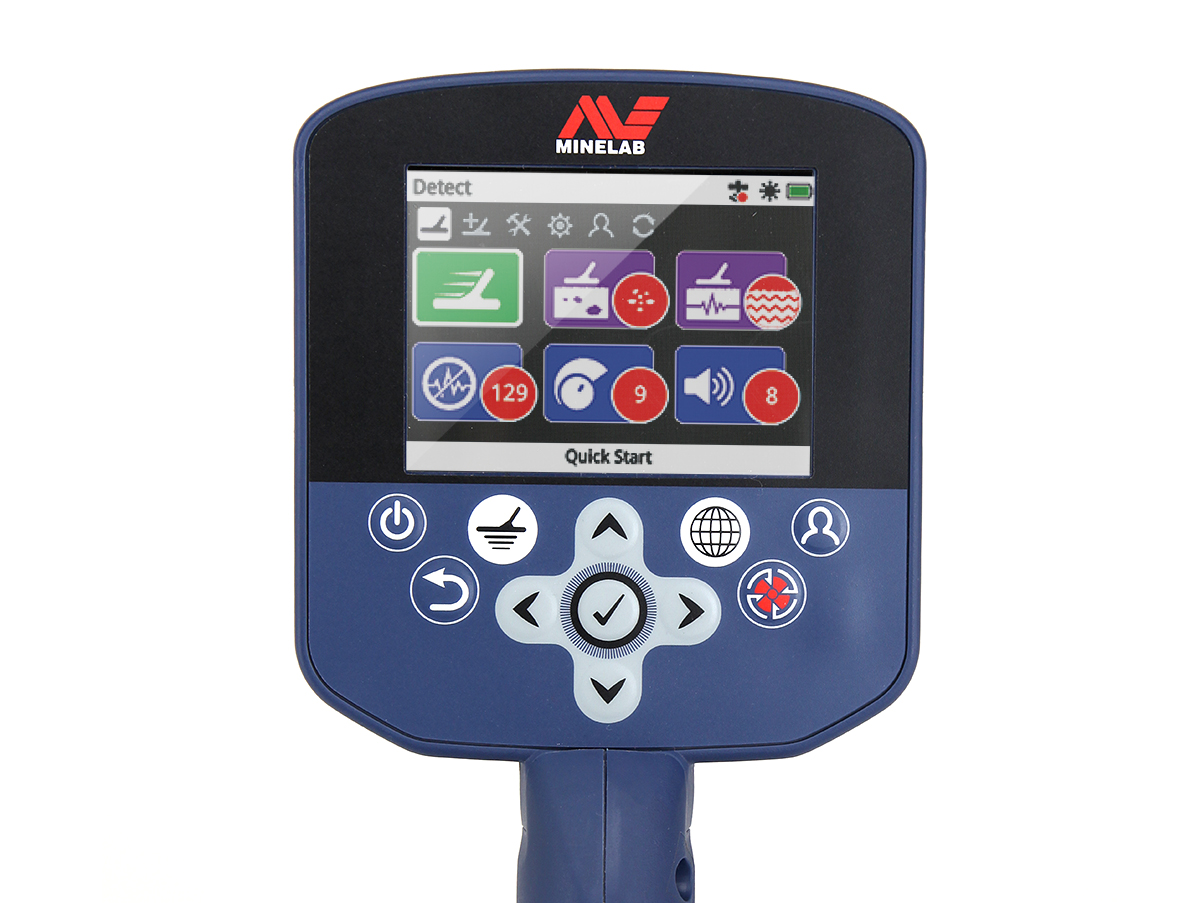

Simple Menu System
The easy-to-use Menu Pages group similar functions together under Detect and Map sections, with all settings quickly accessible. Use the Guide Sequences to get started. You don’t need to be an expert to find gold!

Wireless Audio Freedom
Detect without your headphones attached to the detector. With the WM 12 Wireless Module you have the choice of using the in-built speaker, the supplied headphones, or your favourite headphones.

GPS Locating & PC Mapping
See your location and log gold finds as you detect. With the built-in GPS you’ll efficiently cover more ground and won’t miss a nugget! Record your favourite ‘hot-spots’ by saving data to XChange 2 with Google Maps.

Waterproof Coil to 1 m (3 ft)
The GPZ 14 coil is waterproof and submersible to a depth of 1 m (3 ft). You can easily detect rivers and shorelines with no fuss! The weatherproof design of the GPZ 7000 allows you to go detecting in rainy or wet conditions.

Certified Dealer Star

Available on backorder


Detecting Functions
Search Modes: Gold Mode – High Yield, General, Extra Deep, Ground Type – Normal, Difficult, Severe
Noise Cancel: Auto and Manual (256 channels)
Sensitivity Level: (1–20)
Volume Range: (1–20) Limit (1–20)
Threshold Level Level: (1–50) Pitch (1–100)
Audio Smoothing: Off, Low, High
Ground Balance: Auto and Manual (Quick‑Trak trigger button)

Mapping Functions
GPS Coordinates: DMS (degrees, minutes, seconds), DM (degrees, minutes)
Zoom Levels: 10×10, 20×20, 100×100 (metres/yards per cell)
GeoStore: 100 FindPoints, 100 Waypoints, 10 GeoHunts
GPS Engine: u-blox Neo-7 (56 channels, SBAS: WAAS, EGNOS, MSAS)

Physical Specifications
Coil: (GPZ 14) 14″ x 13″ Super‑D Configuration with skidplate (waterproof to 1 m/3 ft)
Battery: Li-Ion Rechargeable Pack (7.2V DC, 72Wh)
Audio Output: 6.3 mm (.”) non waterproof socket, Wi‑Stream wireless signal transmission
Headphones: KOSS UR 30 100 ohm with 6.3 mm plug (.-inch) (non waterproof )
Wireless Audio: WM 12 module (14 channels) Connect one or more WM 12 modules
Display: Full colour LCD (320 x 240 pixels)
Detector Weight: 3.32 kg (7.32 lb) (Including GPZ 14 coil, skidplate and 72Wh battery)
Detector Length Collapsed: 1170 mm (46.1”) Laid flat, packed position: 1304 mm (51.3”)
Extended: 1526 mm (60.1”) Laid flat, packed position: 1651 mm (65.0”)
Harness: PRO‑SWING 45 with additional J‑strut, cross piece and GA 10 Guide Arm

Key Technologies: ZVT, Super-D, GPSi, Wi-Stream, W8
PC Connection: USB interface for XChange 2 PC software
XChange 2 Software: supplied on CD (Windows XP, Vista, 7, 8 compatible)
Software Updates: GPZ 7000 and WM 12 upgradeable via XChange 2 (with internet connection)
Detector Menu Page Navigation: (6 Detect pages, 5 Map pages) with built-in Guide Sequences
